A white metal interlude

The other day I received an email from Missenden Abbey reminding me of the up and coming Spring Weekend that I've enrolled on. Of all the courses available, I'd chosen to attend the session on 4mm Locomotive Kit Construction. It was a tough decision as there were 4 other courses from which I could learn much: Weathering; Backscenes and scenery;Trackwork; also DCC Sound. In the end I realised that my skills in locomotive construction are currently my main weakness. Though I have had an 03 chassis built for me and have another area group member building a Beattie Well Tank chassis, I cannot rely on the good will of these guys for too long.

The decision I have to make is what to take to Missenden. My current options being:

• A DJH 1366 kit - with the aim to get a working chassis by Sunday afternoon.
• Another Beattie Well Tank - with the aim to get a working chassis by Sunday afternoon.
• A 57xx Chassis as well as taking first attempt at a  57xx chassis for correction.
• The white metal body kit of the Beattie Well Tank that the chassis is being built for.

In thinking about the last option it made me realise that I've not yet constructed a white metal kit. Would I really need to use my time at Missenden just to build a white metal locomotive body? Hmmm... That might not be getting the most out of the weekend.

So, to test my white metal soldering skills, I blew the dust off a couple of Four Most Models wagon kits. The first to get the heat treatment was a SR 12T 8 plank wagon.



Well, overall it's not turned out too bad. I don't think there is anything that a little filler cannot rectify. I'm not brave enough yet to apply more solder to fill some of the joints for fear I'll de-solder a joint. As a bonus the wheels are all in the same plain and it runs true with, so far, no derailments on Tredethy Wharf. I've not installed coupling hooks yet as I'm not sure if the white metal ones provided with the kit would be up to the task.

On to the next wagon, a  LSWR 10T round ended open.

I thought I'd compensate this wagon. Possibly no need to but had itching figures to use the MJT 2291 compensation units again.

After this brief trial of constructing these white metal kits my trepidation of tackling a white metal loco kits has lessened greatly. So this little interlude from the Brake Van Special has proven to me that my time at Missenden should be used mainly on one of the three chassis building projects not wholly on a white metal kit.

Brake Van Special - Toad B

To add a little variation to the rake of brake vans for the Brake Van Special, I decided to dig out a Parkside's kit of a Toad B. I believe that some lasted into the 1960s in their original state so thought one might have found its way down to Cornwall. This is probably unlikely but as a Toad E was used on the Wenfordbridge Branch it might have happened...

When building plastic wagon kits I normally remove the plastic w irons complete with springs and axle boxes leaving just the wagon solebars. I then reduce the thickness of the solebars so that MJT W iron suppression units can be installed. Appropriate cast springs and axle boxes are then added to complete the running gear. In looking at the Toad B solebars I became aware of some very fragile components that, knowing me, would get damaged in the above procedure. This got me thinking of using MJT 2291 suspension units instead which would enable me to keep the Parkside offerings on the kit.

I believe the standard way to install these compensation units is to only use one rocking unit and insert bearings into the opposite end plastic axle boxes to create a fixed axle. In this instance, to make sure the ride height is parallel, I decided to install two units making one non rocking by slipping an appropriate thickness of plastic card between the mounting plate and the rocking assembly. The only other requirement was to create a groove in one set of the plastic axle boxes to allow one unit to rock.

 Other minor modifications I made to the kit are:

• Replacing the plastic buffers with white metal ones supplied by Lanakshire Models.
• Replacing the plastic torpedo vents in the roof with Lanakshire Models castings.
• Installing three link couplings.

I've left the roof loose so that a few figures can be easily added to each veranda. The model's weight can then be checked and, if required, more weight can be added inside the van.

Next stage is making and fitting all the hand rails... Hmmm, this should be fun!

BrakeVan Special - Figure painting

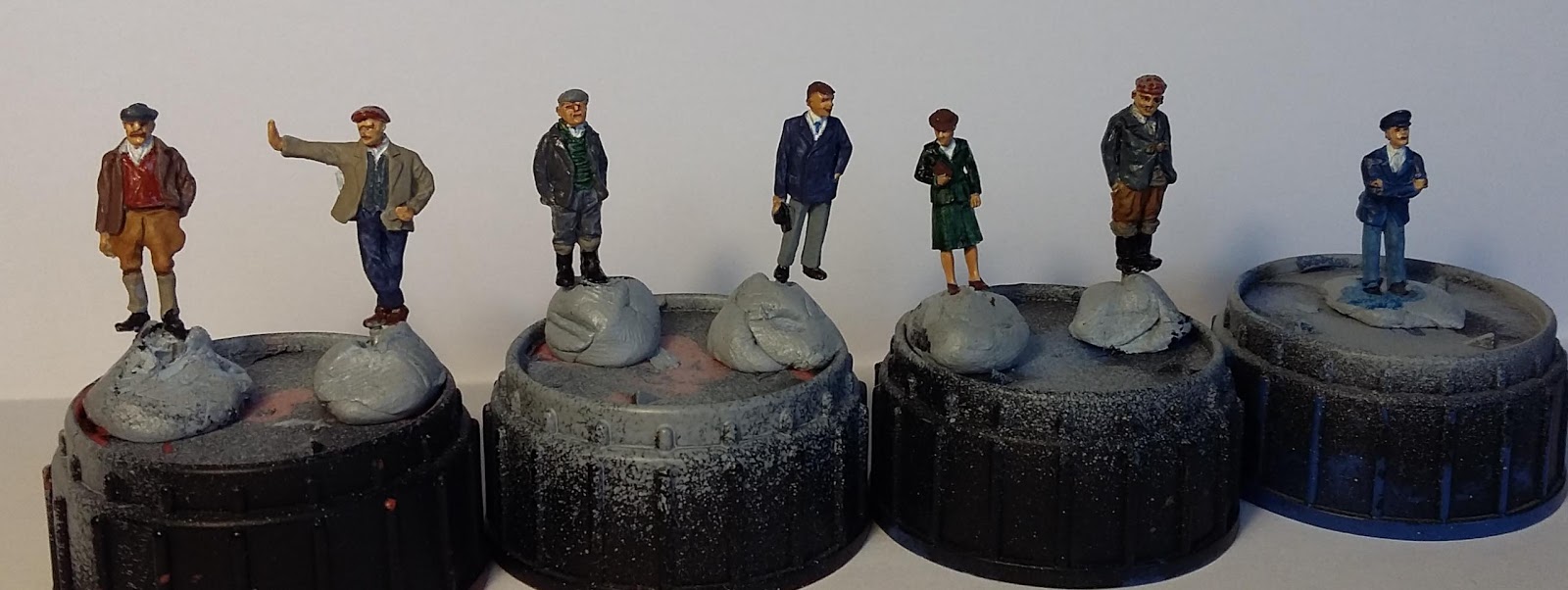

Well painting the cattle and Pip got me started on figure painting but these are becoming a real task to paint...eventually I built up a small head of steam and completed the few below.

Well, they still needing a little shading and a coat of matt varnish applying but they look to be a reasonable start. I have a number more to paint as the Brake Van Special will consist of about six vans. Unfortunately this is about the maximum number of brake vans my cassettes will take. I feel the vans should look crowded with people so I estimate I'll require around 40 or more figures. Hope I can keep the enthusiasm going and get a few more painted before Scaleforum...
